XBW Soles Only Boot Scrubber & Footwear Sanitizing System
XBW Soles Only Footwear Sanitizing System

XBW Soles Only Boot Scrubber

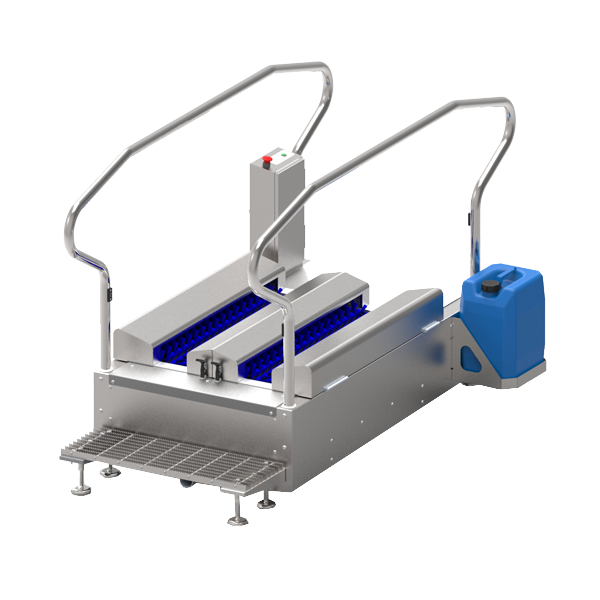

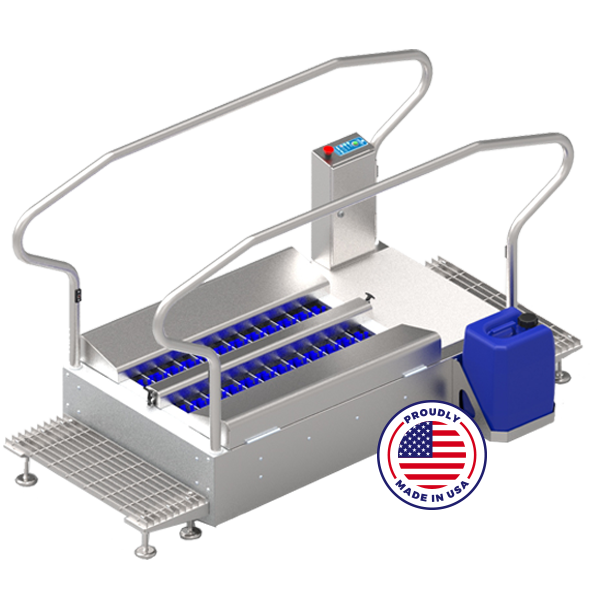

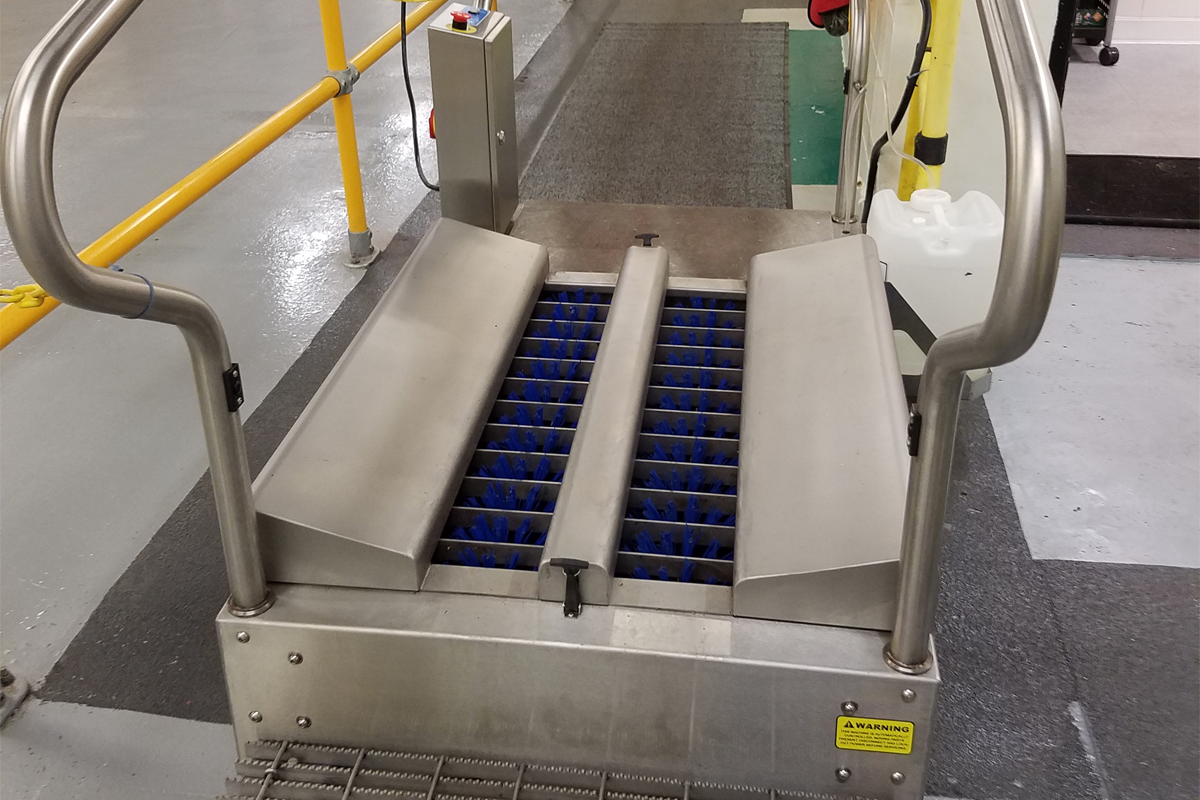

The XBW Soles Only footwear sanitizing system by Meritech is specifically designed for high through-put soles only scrubbing and sanitizing for a wide range of employee footwear types.

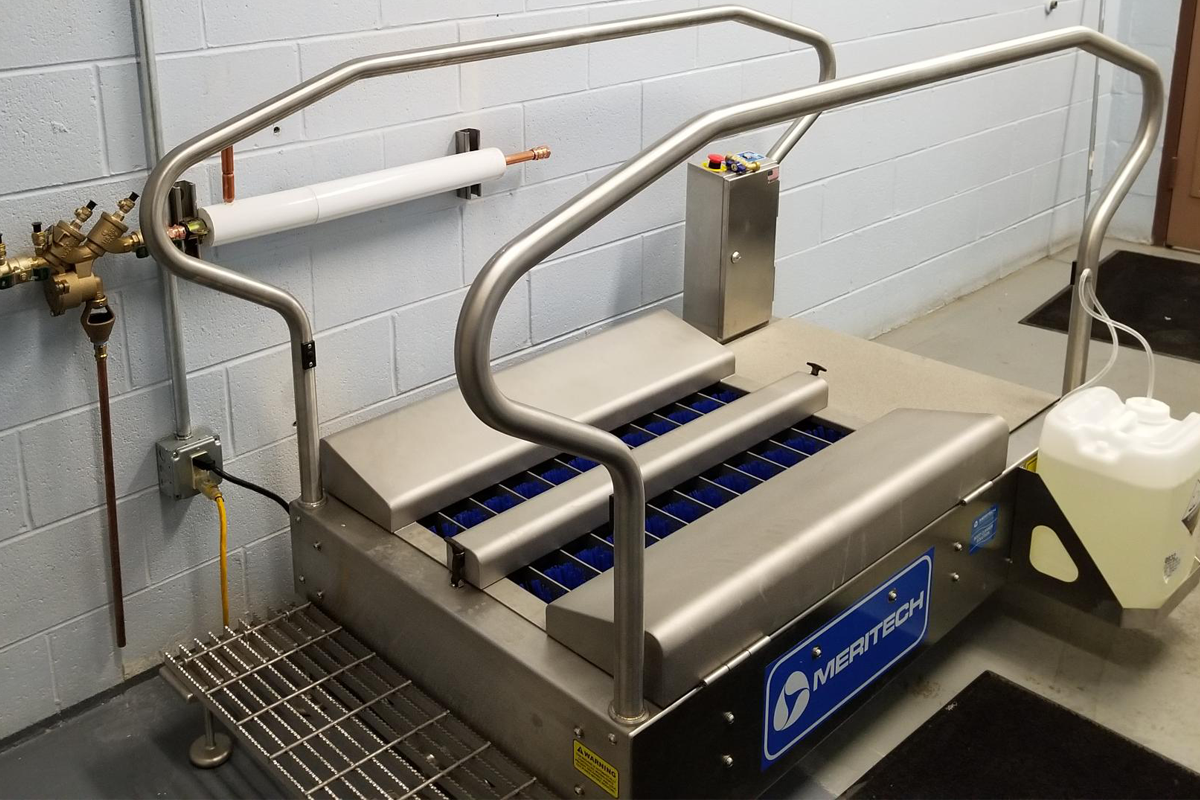

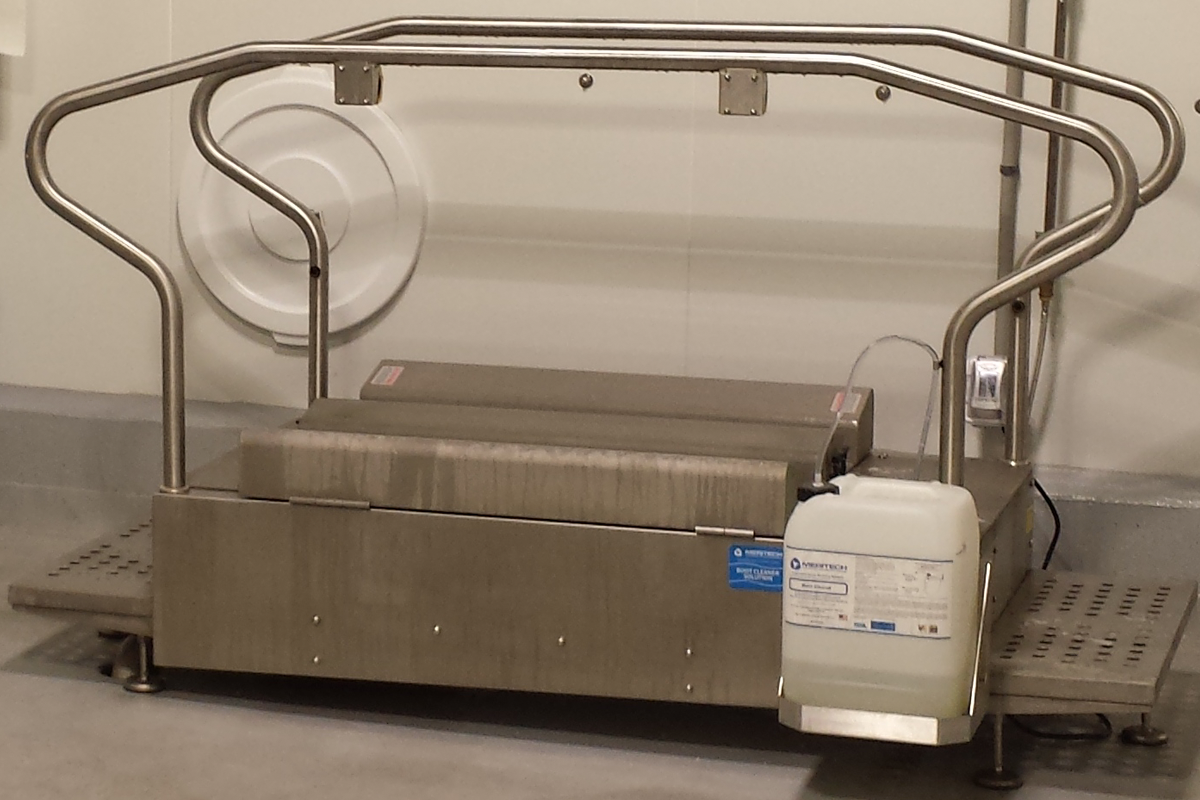

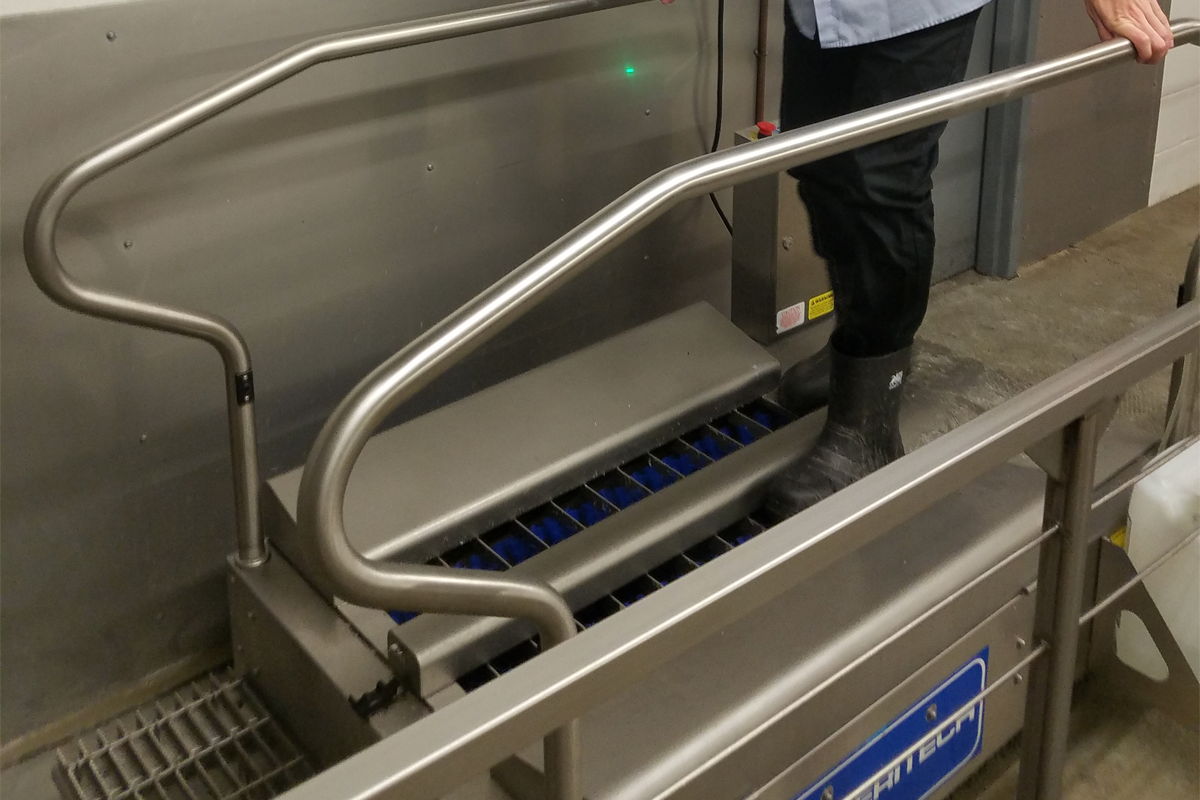

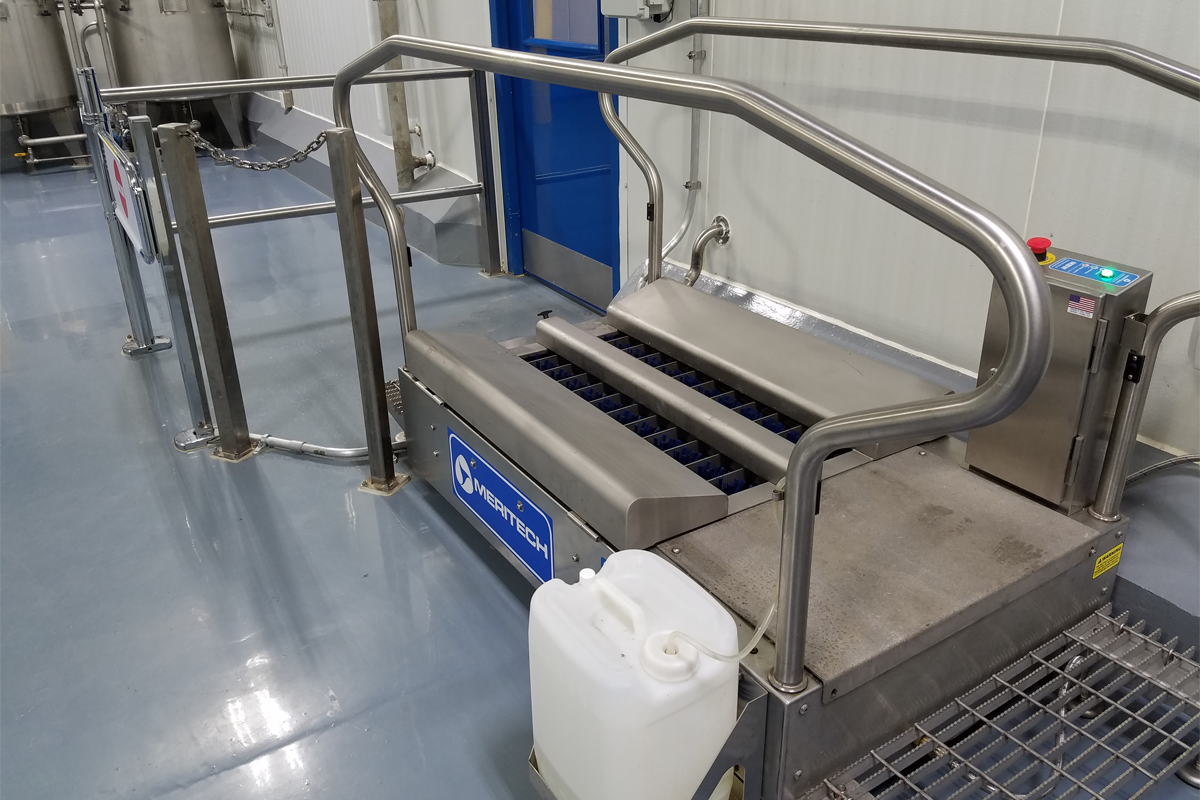

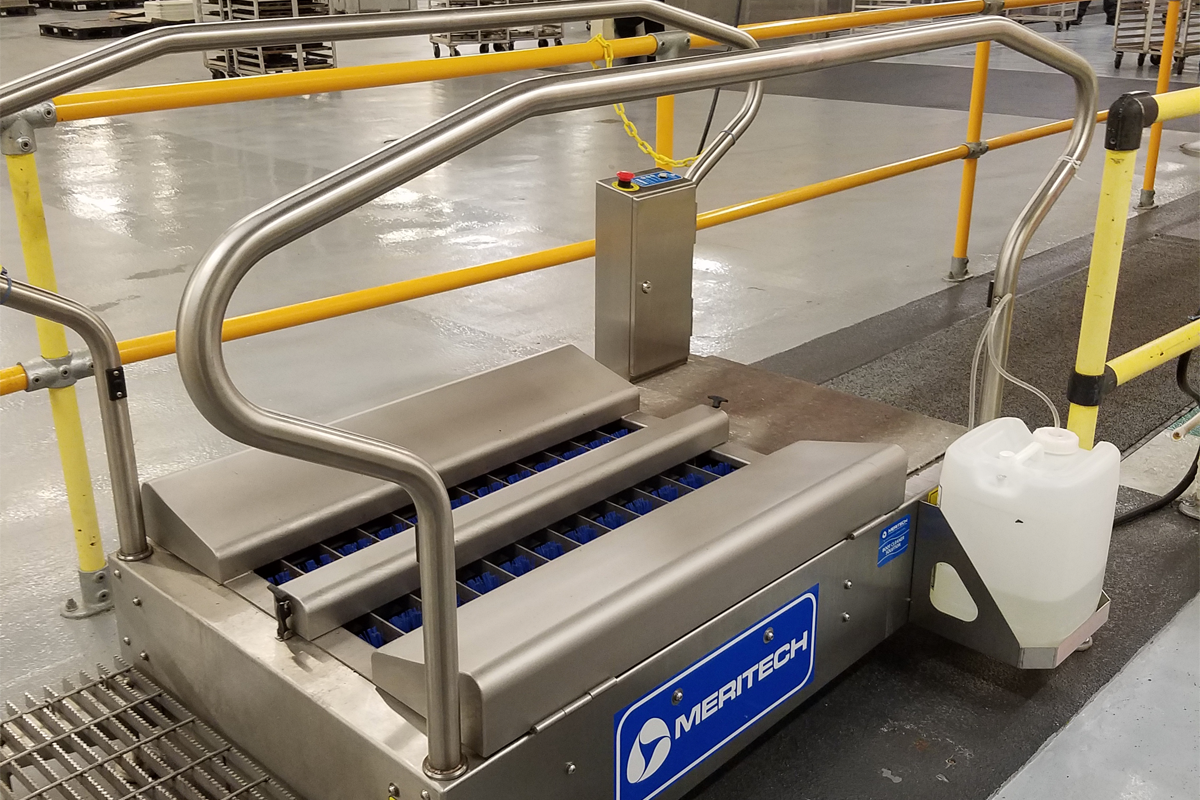

This system continuously applies a strong sanitizing solution to soles using a series of high-pressure nozzle jets. This easy-to-install and compact system fits into tight spaces at food processing plants. Constructed using heavy-duty stainless steel and other top quality materials, the XBW Soles Only footwear sanitizing system is easy to clean and maintain.


  • Overview
  • Overview

    • Continuous sole scrubbing system
    • Designed for high-volume operations
    • Cleans quickly and effectively
    • A compact walk through sole scrubber
    • Bidirectional Photoeye Operation
    • Adjustable Sole Depth
    • Tool-less Easy Brush Removal
    • Ready Indicator Light
    • Wash Indicator Light
    • Main Power Shut Off Switch
    • Soap Empty Indicator Light & Alarm
    • Easy Clean Hygienic Design
    • Non-Slip Surfaces
    • Optional Heavy-Duty Brushes for Stubborn debris
  • Specifications
  • Specifications

    • Dimensions:34" width x 82" length x 48" height.  46" width with soap basket
    • Horizontal Brush: Length 35”
    • Weight: 600 lbs. approximately
    • Shipping Weight: 900 lbs.
    • Cycle Activation: Photoeye operation – bi-directional
    • Water Consumption: 0.3  at an 8-second cycle
    • Electrical: 120 VAC, 50/60 Hz, 1300 W running, 20 AMP breaker. International voltages available.
    • Plumbing Inlet: 3/4" male garden hose, minimum 4 GPM, 1000 F Max 30-40 PSI, 50 PSI maximum, cold line (System equipped with a pressure regulator)
    • Drain: 2" MNPT Drain Pipe. (Floor drain required.)
    • Solutions Storage: 1 – 20 Liter sanitizing chemical container
    • Solutions: Required sanitizing solutions provided only by Meritech
  • Available Options
  • Available Options

    • Bi-directional photoeye operation
    • Adjustable brush depth
    • Tool-less brush removal
    • Ready Indicator light
    • Wash Indicator light
    • Throughput of up to 20 employees/minute
    • Soap Empty Indicator Light & Alarm
    • Auto shutdown when cover open
    • Hygienic Design for cleanability
    • Non-slip surfaces
  • Ideal Markets
  • Ideal Markets

    For high throughput food production and processing facilities, this soles only scrubber cleans and sanitizes the soles of boots or laced shoes and is ideal for any facility required to eliminate footwear as a vector for the spread of pathogens into clean zones. Automatically maintains required PPM kill level of sanitizing chemical. Visit your market for other available Meritech solutions:
