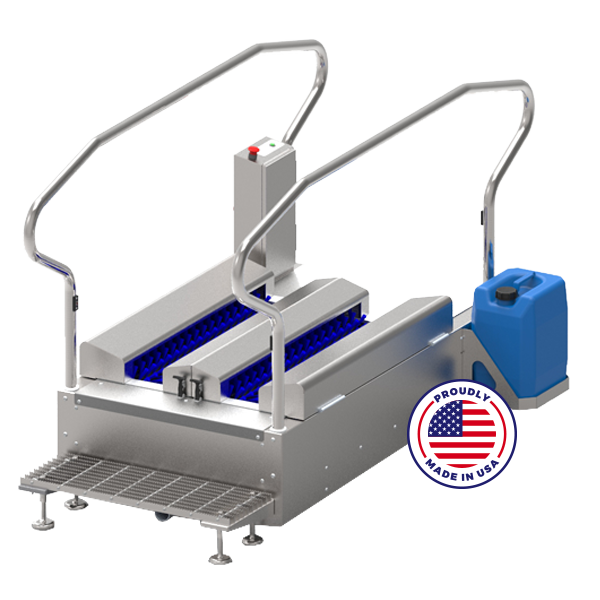

XBW 3.0 Industrial Boot Scrubber

XBW 3.0 boot scrubber is designed for high-volume facilities, washing & sanitizing footwear without laces of 15 – 20 employees per minute in as little as three seconds! The XBW 3.0 continuously applies sanitizing solution to boots through a series of high-pressure nozzle jets. CIP Friendly & designed for wet, industrial environments, select the XBW 3.0 to prevent cross-contamination.

Partners in Hygiene Excellence

NutradreidLogo_2019Website
SIGInternationalLogo_2019Website
ProteinResearchLogo_2019Website
KatadynLogo_2019Website
SmithfieldLogo_2019Website
PepsiCoLogo_2019Website
PerdueFarmsLogo_2019Website
KraftHeinzLogo_2019Website
MARSLogo_2019Website
McDonaldsArchesLogo_2019Website
KelloggsLogo_2019Website
GeneralMillsLogo_2019Website
CocaColaLogo_2019Website
ConagraBrandsLogo_2019Website
BayerLogo_2019Website
CarnivalLogo_2019Website

Overview

  • Continuous boot scrubbing system
  • Designed for high-volume operations
  • Cleans quickly and efficiently
  • Most compact walk through boot scrubber on the market
  • Bidirectional Photoeye Operation
  • Adjustable Sole Depth
  • Tool-less Easy Brush Removal
  • Ready Indicator Light
  • Wash Indicator Light
  • Main Power Shut Off Switch
  • Solution Empty Indicator
  • CIP Friendly
  • Non-Slip Surfaces
  • Optional Heavy-Duty Brushes for Stubborn debris

Discover Automatic Boot Washers:

Specifications

  • Dimensions:34" width x 82" length x 48" height. 44 3/8" width with soap basket
  • Horizontal Brush Length: 35"
  • Weight: 650 lbs. approximately
  • Shipping Weight: 950 lbs.
  • Cycle Activation: photoeye operation, bidirectional
  • Water Consumption: 0.3 - 0.5 gallons at an 8-second cycle
  • Electrical:120 VAC, 50/60 Hz, 1300 W running, 20 AMP breaker. International voltages available
  • Plumbing Inlet: 3/4" male garden hose, minimum 4 GPM, 1000 F Max 40-50 PSI maximum, cold line (System equipped with a pressure regulator)
  • Drain: 2" MNPT Drain Pipe. (Floor drain required.)
  • Solutions Storage: 1 — 20 Liter sanitizing chemical container
  • Solutions Compatibility: Required sanitizing solutions provided only by Meritech

Download Full Specifications:

XBW3.0 SpecPreview
Request Specs

Need Help with Your XBW 3.0?

Get help from our service team using the button here.

Speak to an Expert

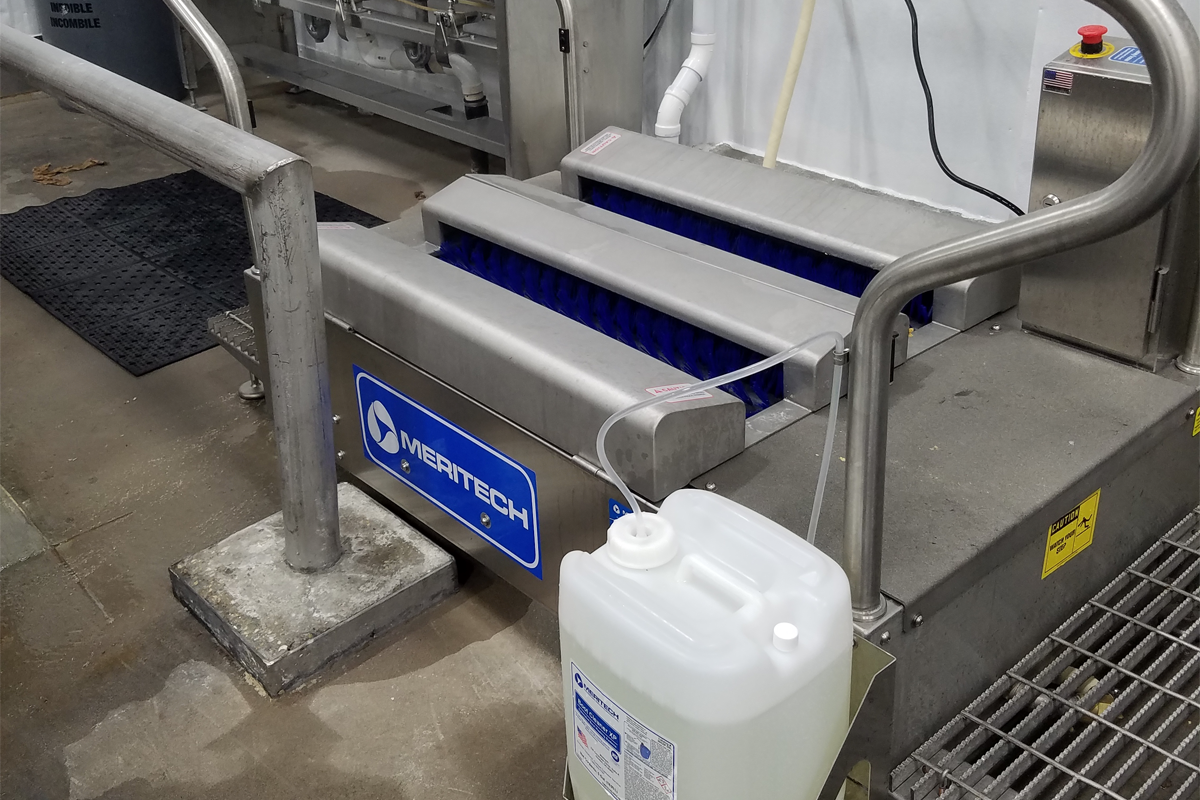

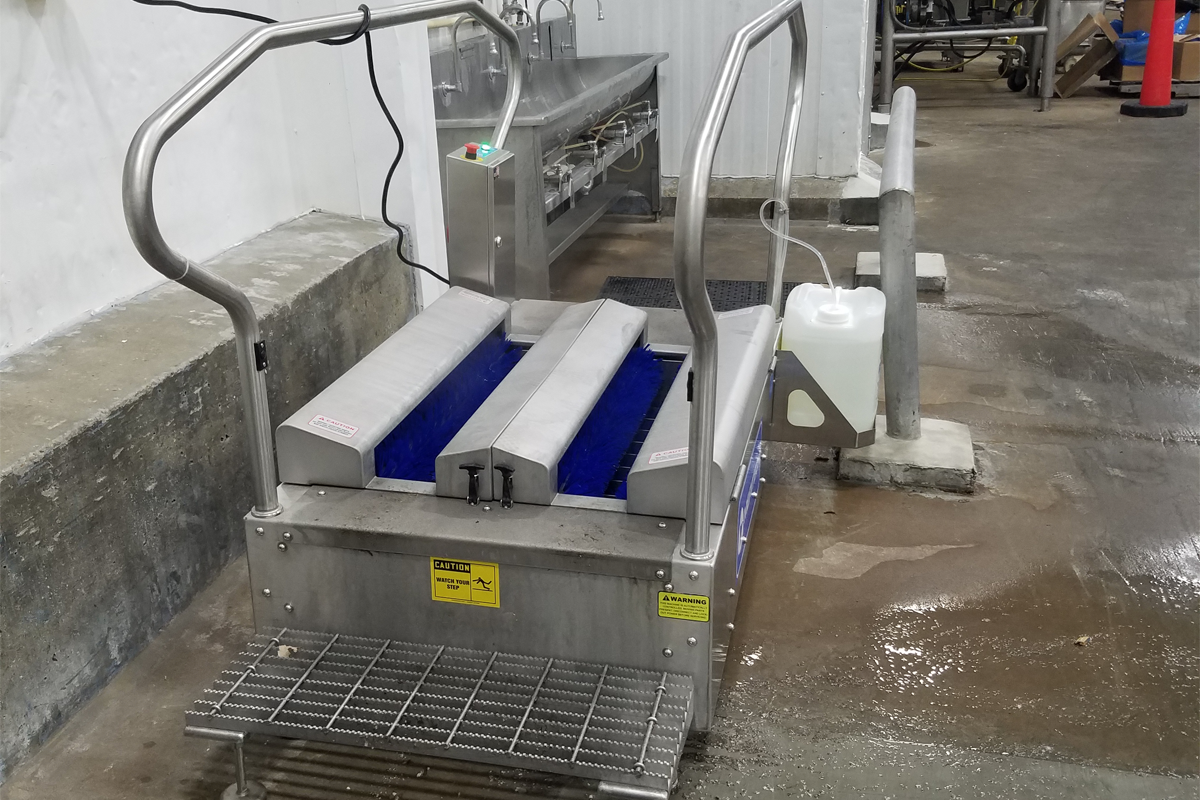

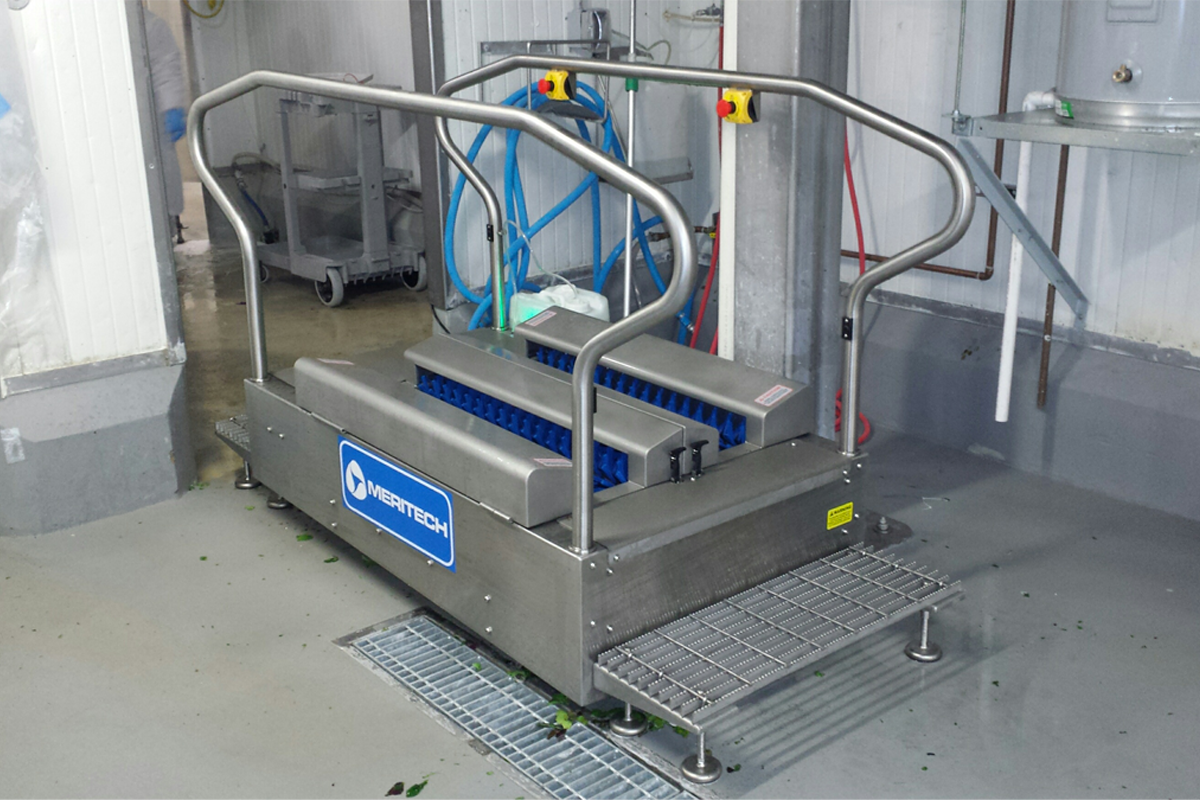

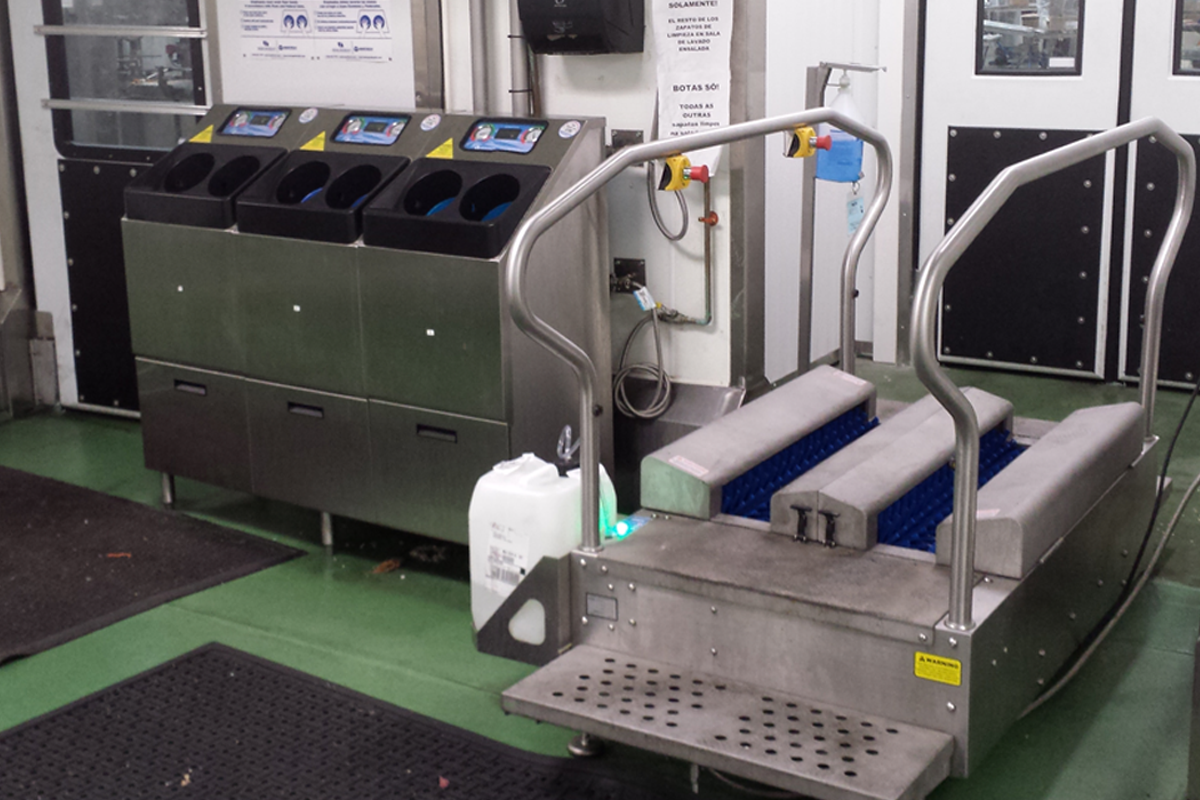

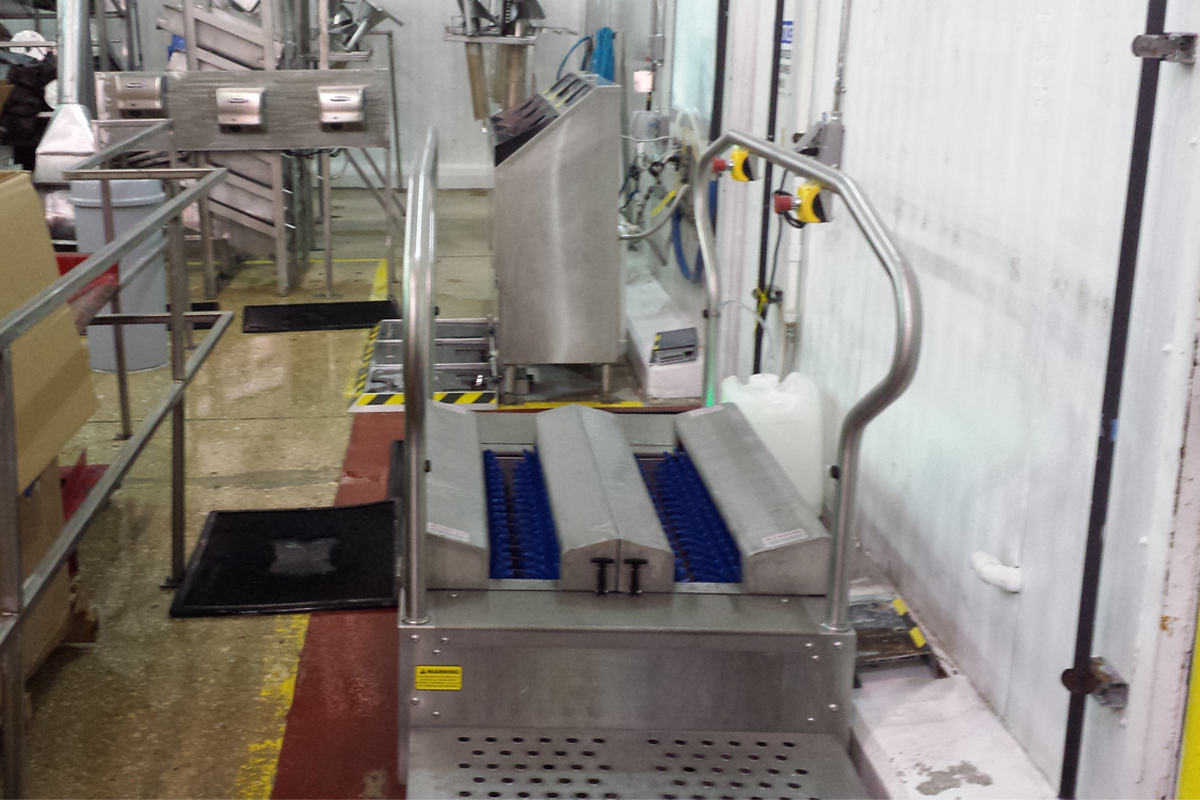

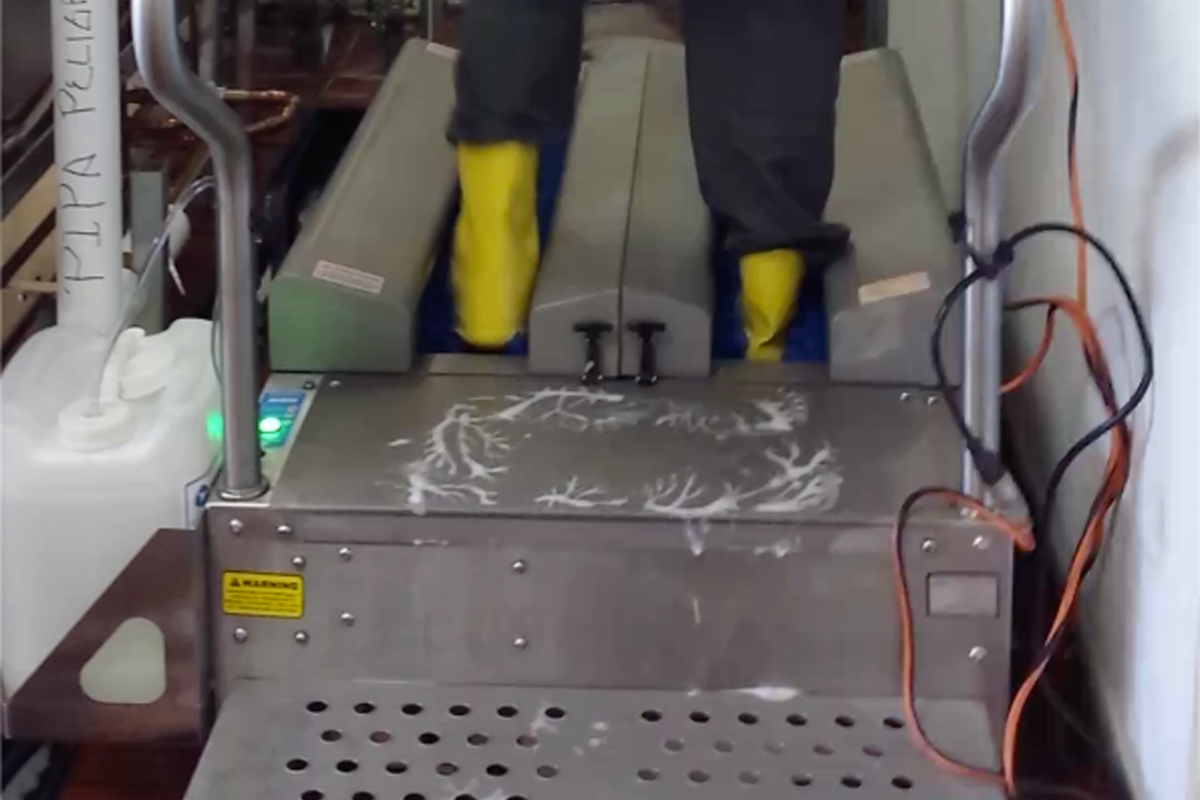

Installation Gallery

See Meritech automated boot washing systems in use at some of our customer's locations below!

Is the XBW 3.0 right for you?

Our team is here to help you choose the best system.

You May Also Like:

XBWSolesOnly_SquareImage_2019Website

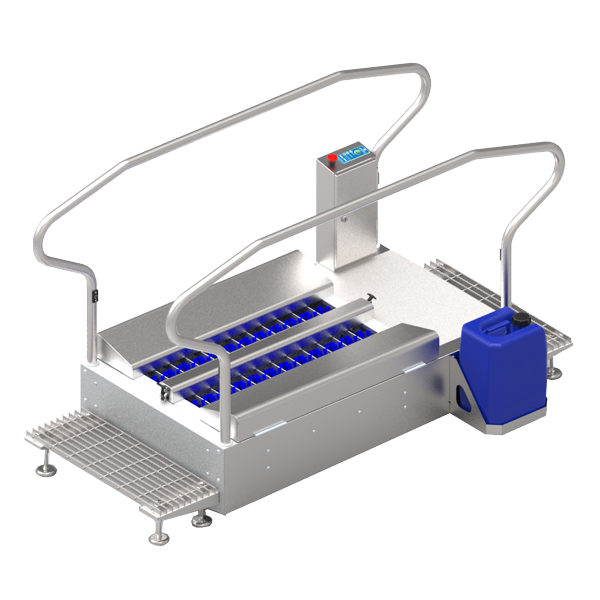

XBW Soles Only
