MBW Soles-Only

The MBW Soles-Only Automated Boot Washing Station scrubs and sanitizes the soles of work shoes and boots, even those with laces, providing cross-contamination control between processing operations. Designed for wet, industrial environments, MBW Soles-Only boot scrubber is compact in design, CIP friendly and easy to install.

Partners in Hygiene Excellence

NutradreidLogo_2019Website
SIGInternationalLogo_2019Website
ProteinResearchLogo_2019Website
KatadynLogo_2019Website
SmithfieldLogo_2019Website
PepsiCoLogo_2019Website
PerdueFarmsLogo_2019Website
KraftHeinzLogo_2019Website
MARSLogo_2019Website
McDonaldsArchesLogo_2019Website
KelloggsLogo_2019Website
GeneralMillsLogo_2019Website
CocaColaLogo_2019Website
ConagraBrandsLogo_2019Website
BayerLogo_2019Website
CarnivalLogo_2019Website

Overview

  • Sole scrubbing system
  • Compact design for tight spaces
  • Easy to Install and clean
  • Bidirectional Photoeye Operation
  • Adjustable Sole Depth
  • Tool-less Easy Brush Removal
  • Ready Indicator Light
  • Wash Indicator Light
  • Main Power Shut Off Switch
  • Solution Empty Indicator Light & Alarm
  • Easy Clean Hygienic Design
  • Non-Slip Surfaces
  • Optional Heavy-Duty Brushes for Stubborn debris

Discover Automatic Boot Washers:

Specifications

  • Dimensions: 32" width x 66 1/2" length x 49" height. 42 1/8" width with soap basket
  • Weight: 350 lbs. approximately
  • Shipping Weight: 650 lbs.
  • Cycle Activation: photoeye operation, bidirectional
  • Water Consumption: 0.3 gallons at an 8-second cycle
  • Electrical: 120 VAC, 50/60 Hz, 1300 W running, 20 AMP breaker. International voltages available.
  • Plumbing Inlet: 3/4" male garden hose, minimum 4 GPM, 1000 F Max 30-40 PSI, 50 PSI maximum, cold line (System equipped with a pressure regulator)
  • Drain: 2" MNPT Drain Pipe. (Floor drain required.)
  • Solutions Storage: 1 — 20 Liter sanitizing chemical container
  • Solutions Compatibility: Required sanitizing solutions provided only by Meritech

Full Specifications:

MBWsoSpecPreview
Request Specs

Need Help with Your MBW Soles-Only?

Get help from our service team using the button here.

Speak to an Expert

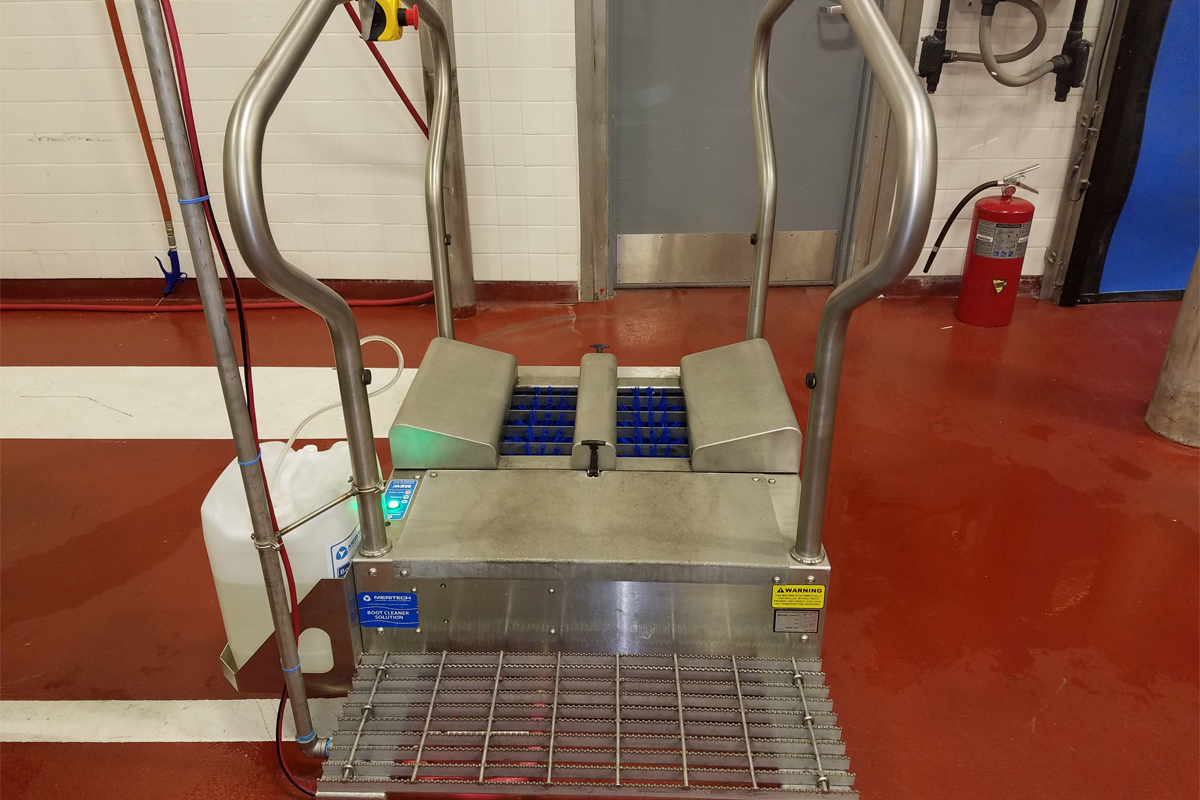

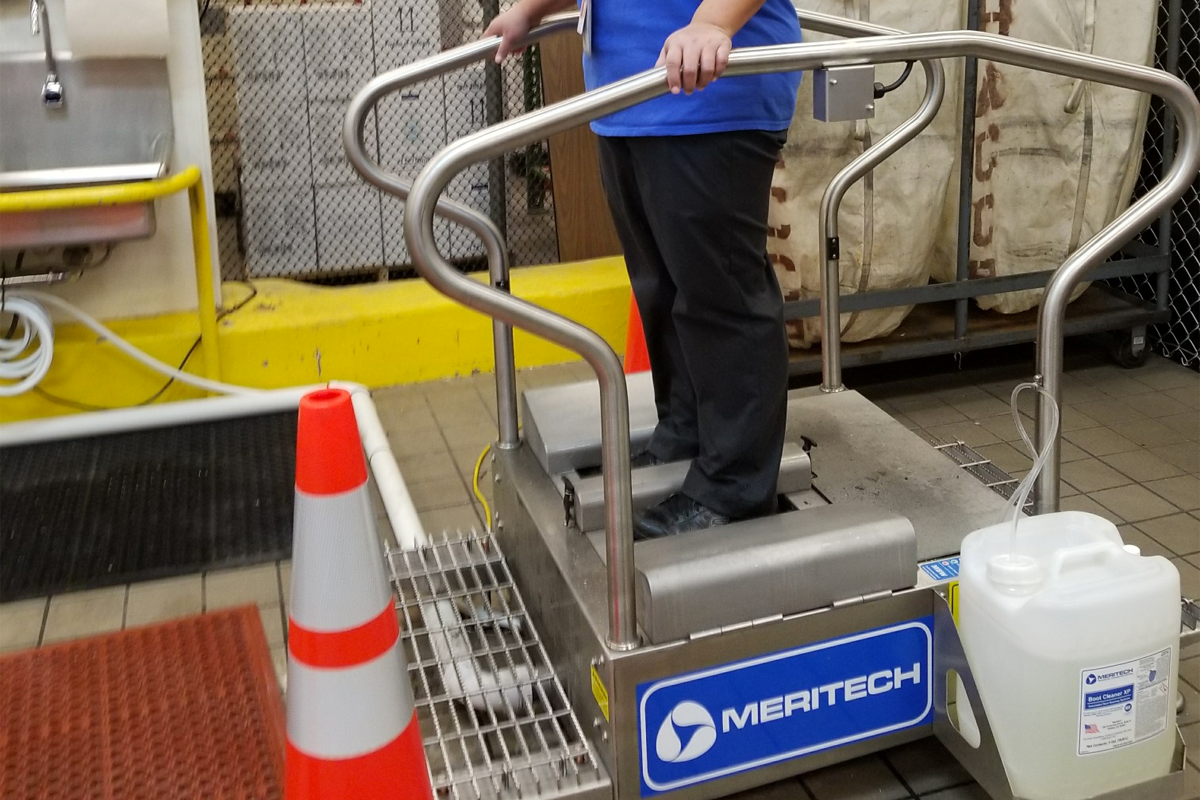

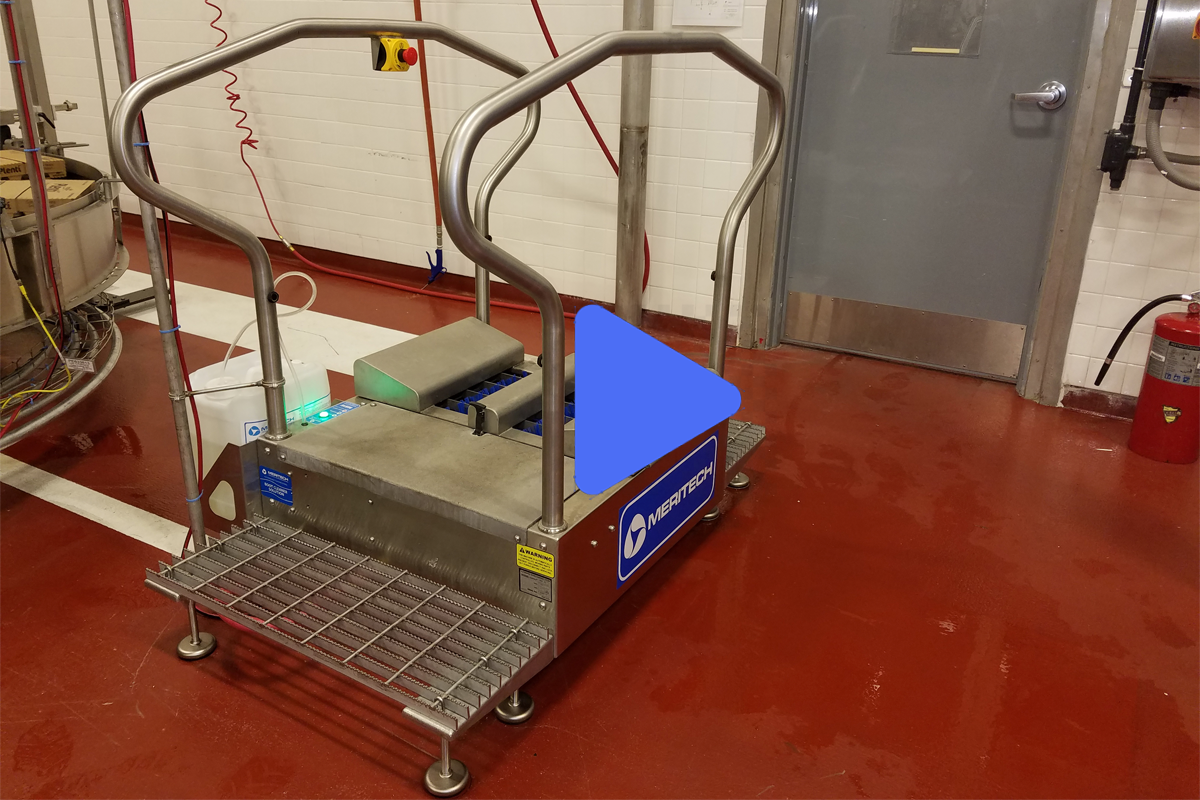

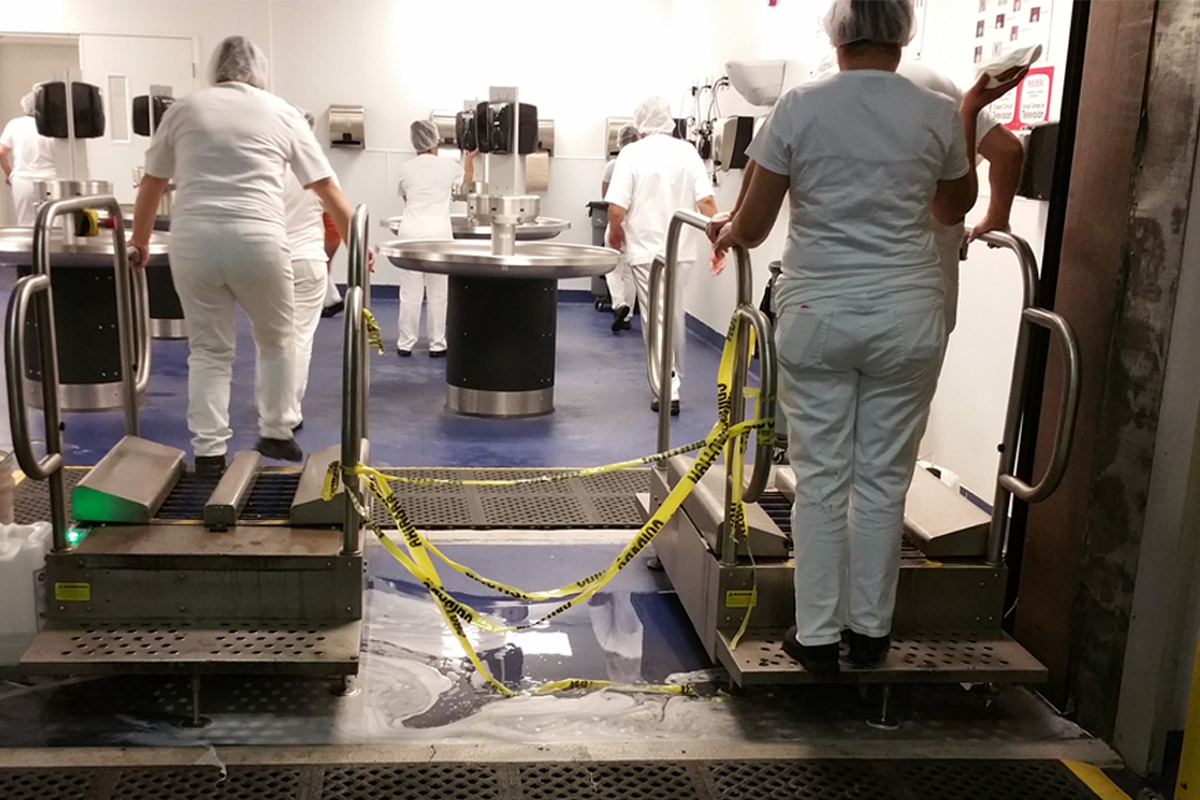

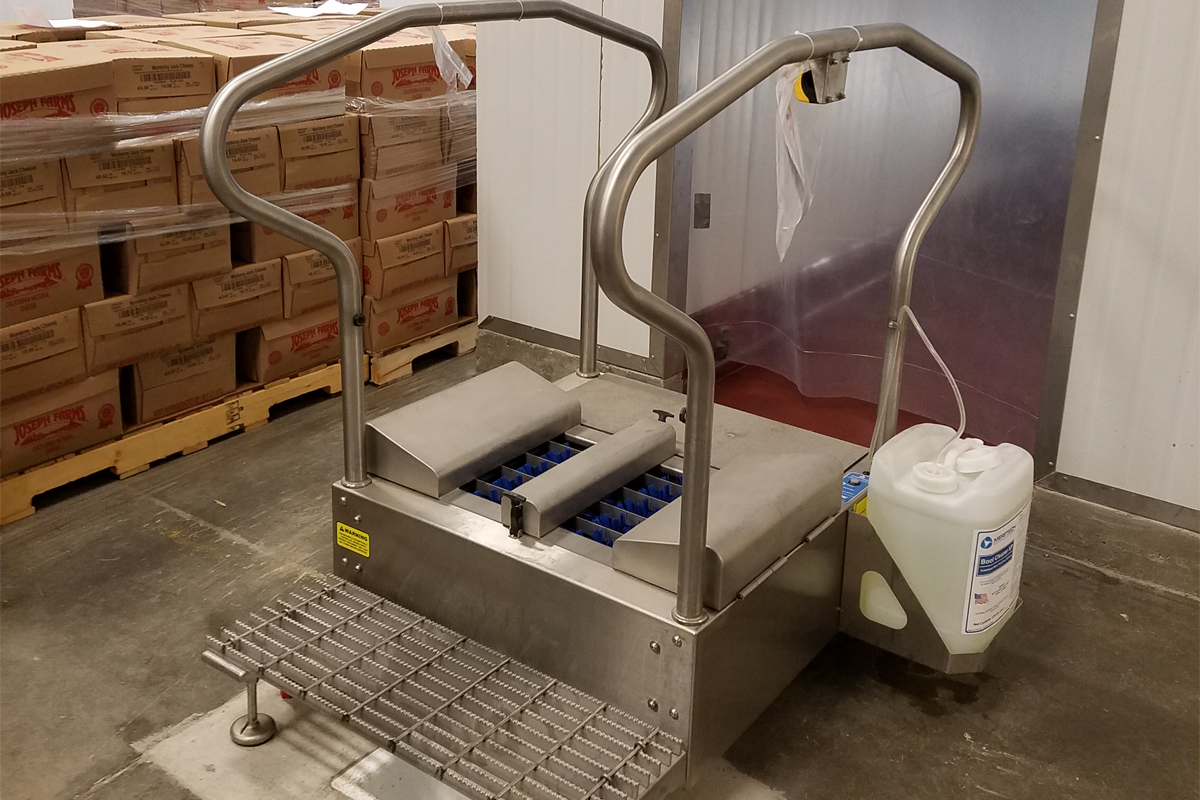

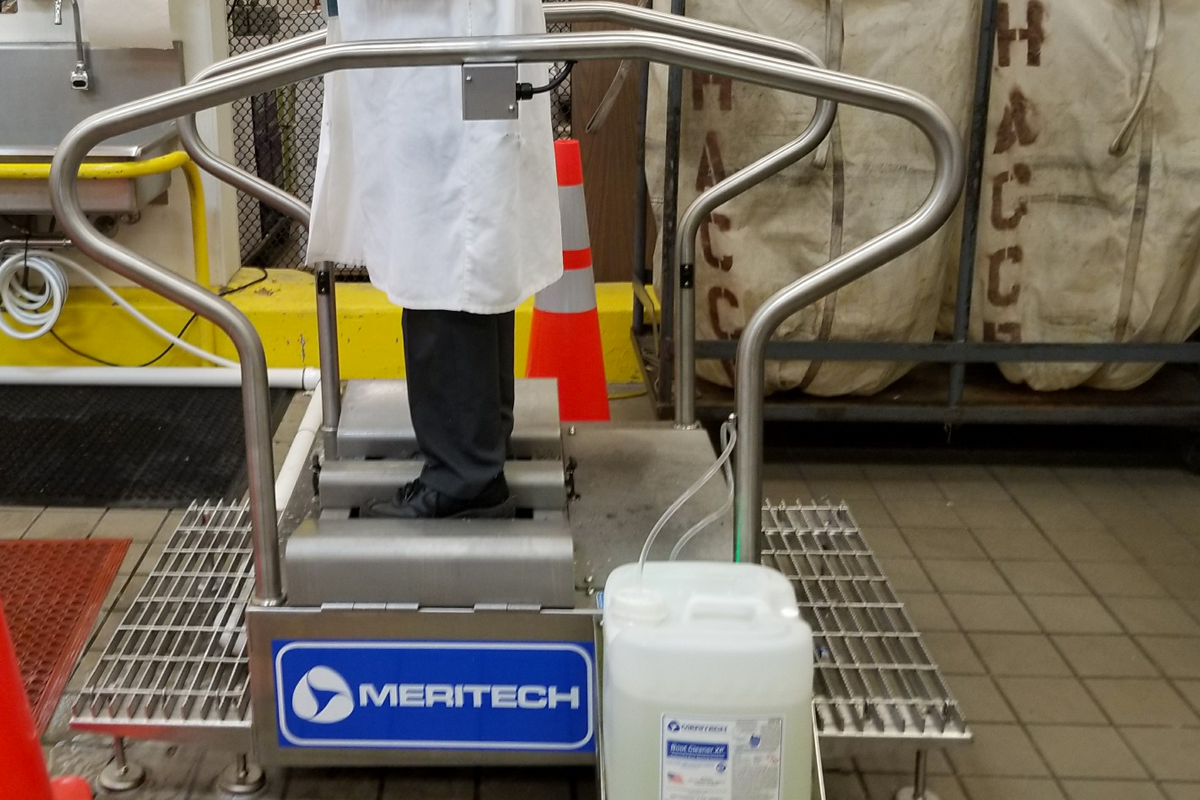

Installation Gallery

See Meritech automated boot washing systems in use at some of our customer's locations below!

Is the MBW Soles-Only right for you?

Our team is here to help you choose the best system.

You May Also Like:

MBW3000_SquareImage_2019Website

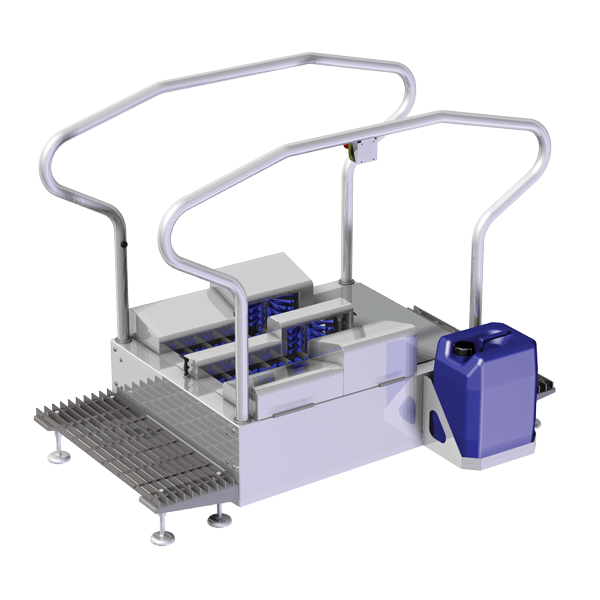

MBW 3000
Compact boot scrubber for the soles and up to 3 inches of boots
ControlledAccessTurnstile_TransparentBackground_2019Website
Controlled Access
Automated controlled access turnstile.
2000S_SquareImage_2019Website

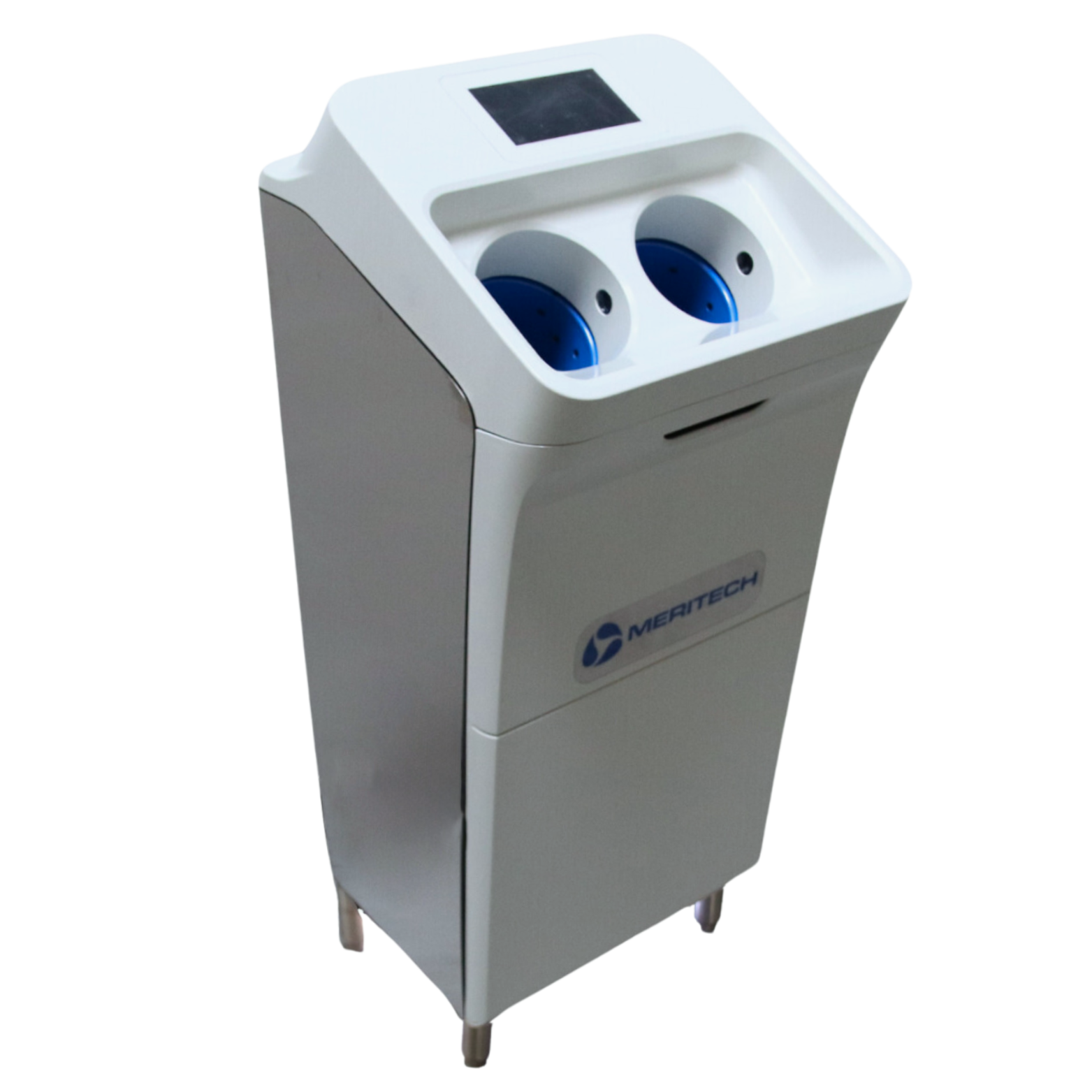

CleanTech® 2000S
