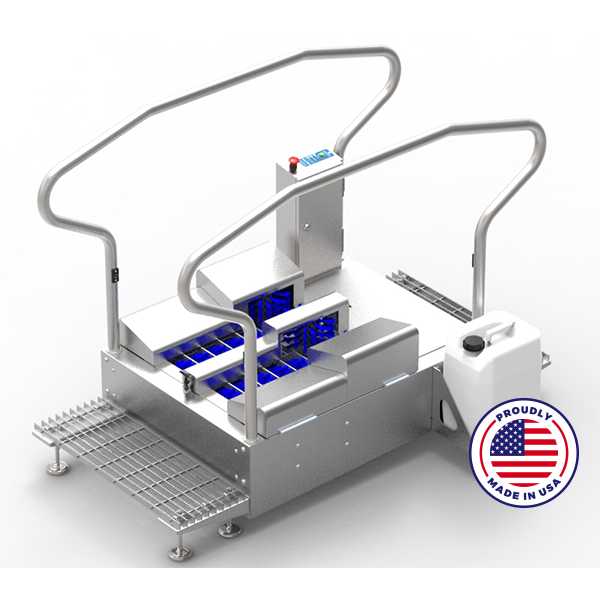

MBW 3000 Low Profile Boot Scrubber System

MBW 3000 Low Profile Boot Scrubber Station

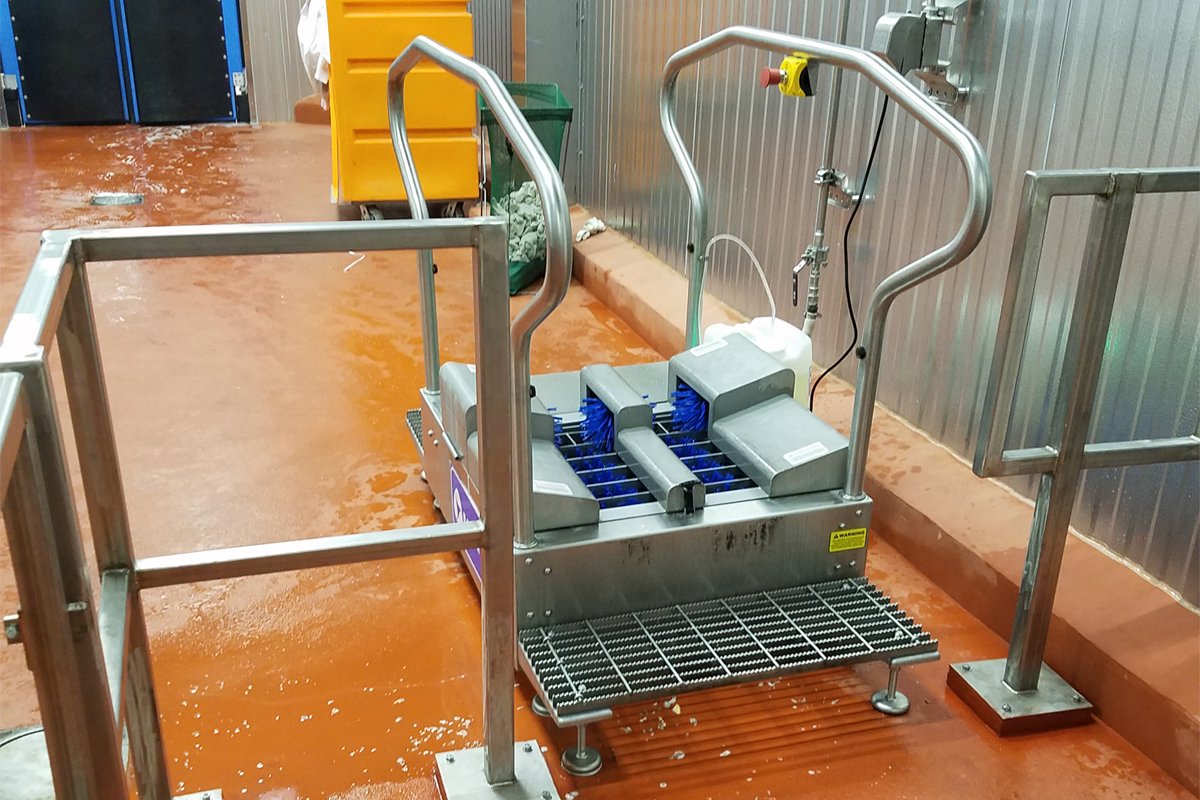

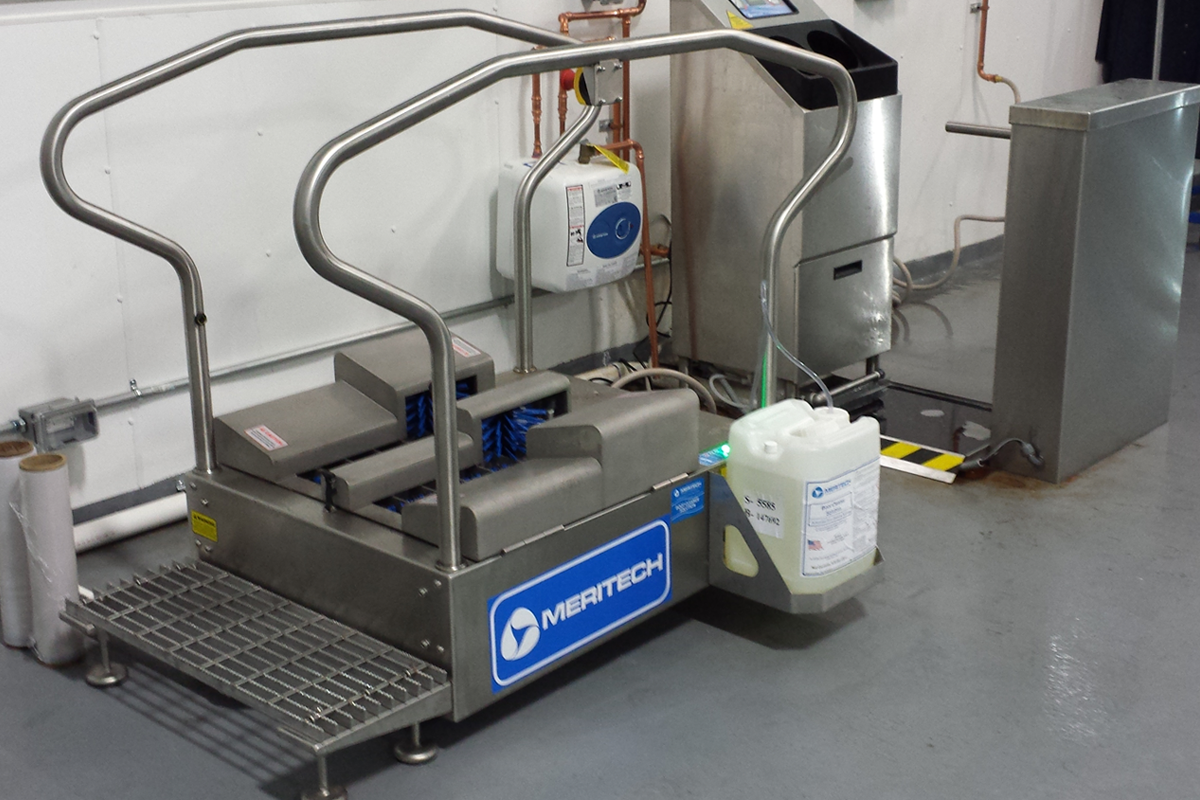

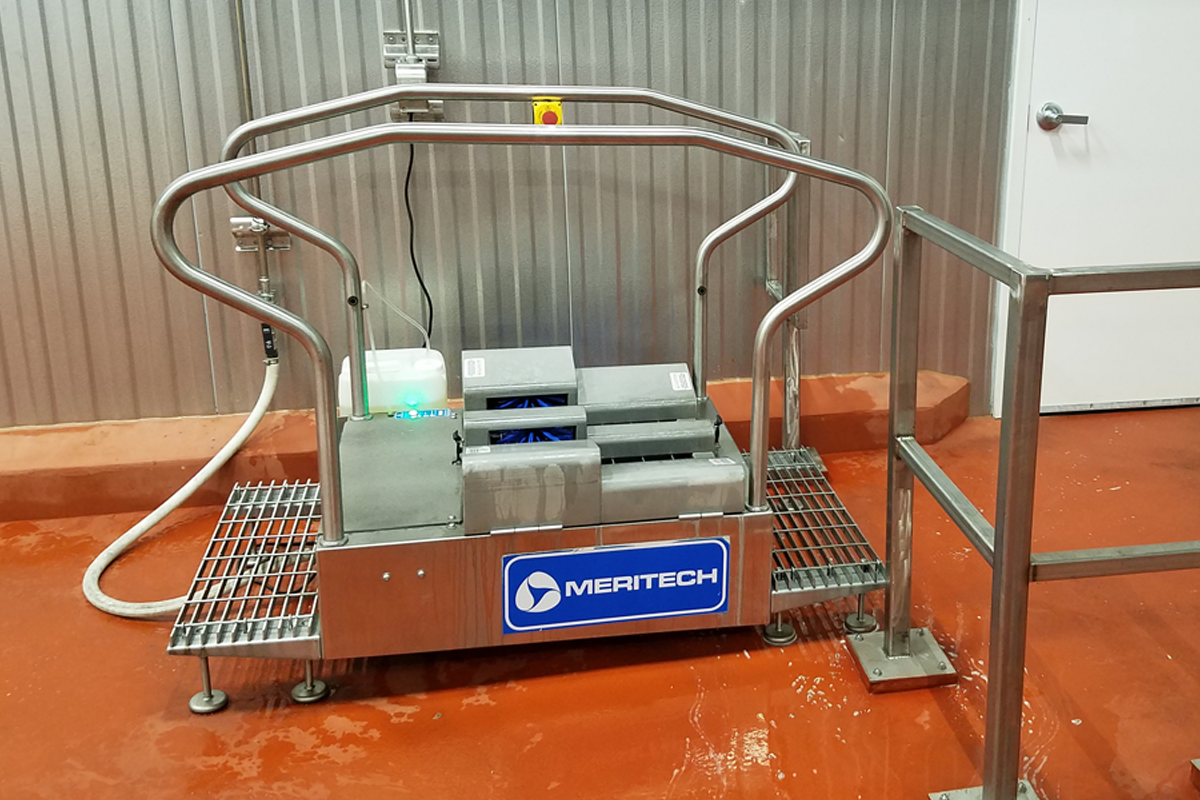

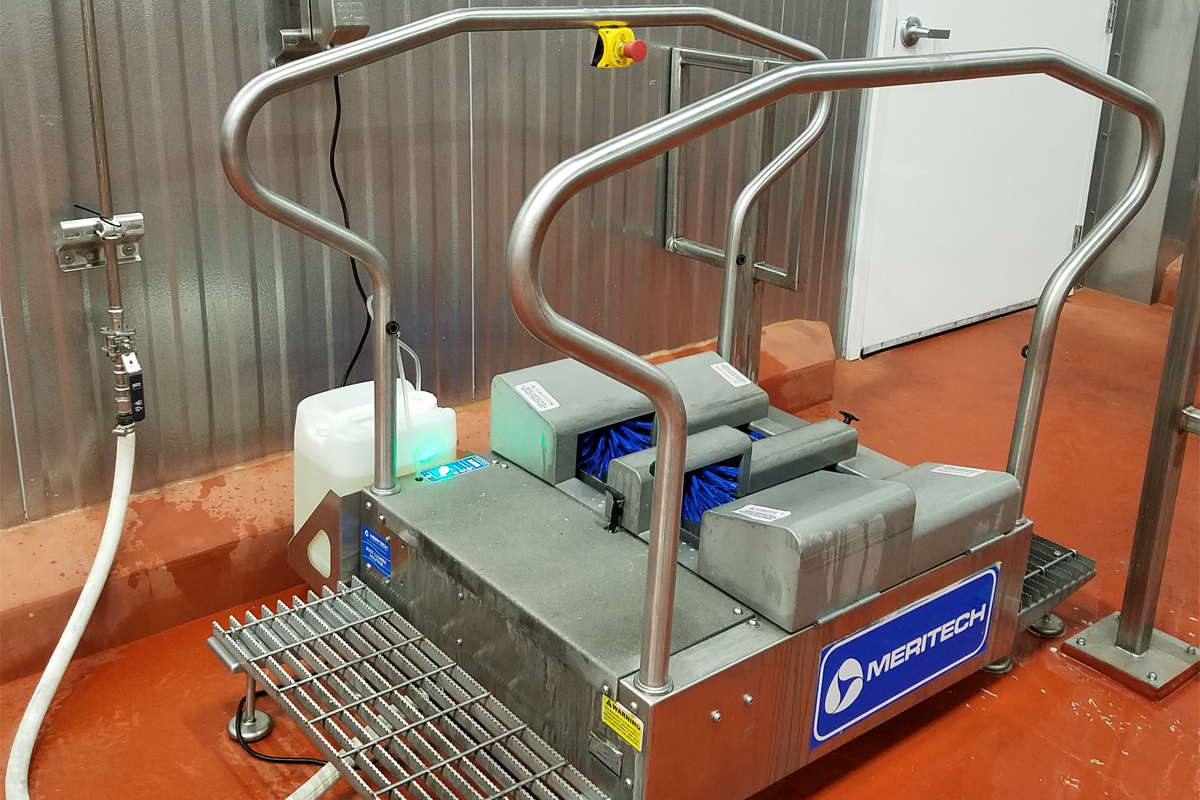

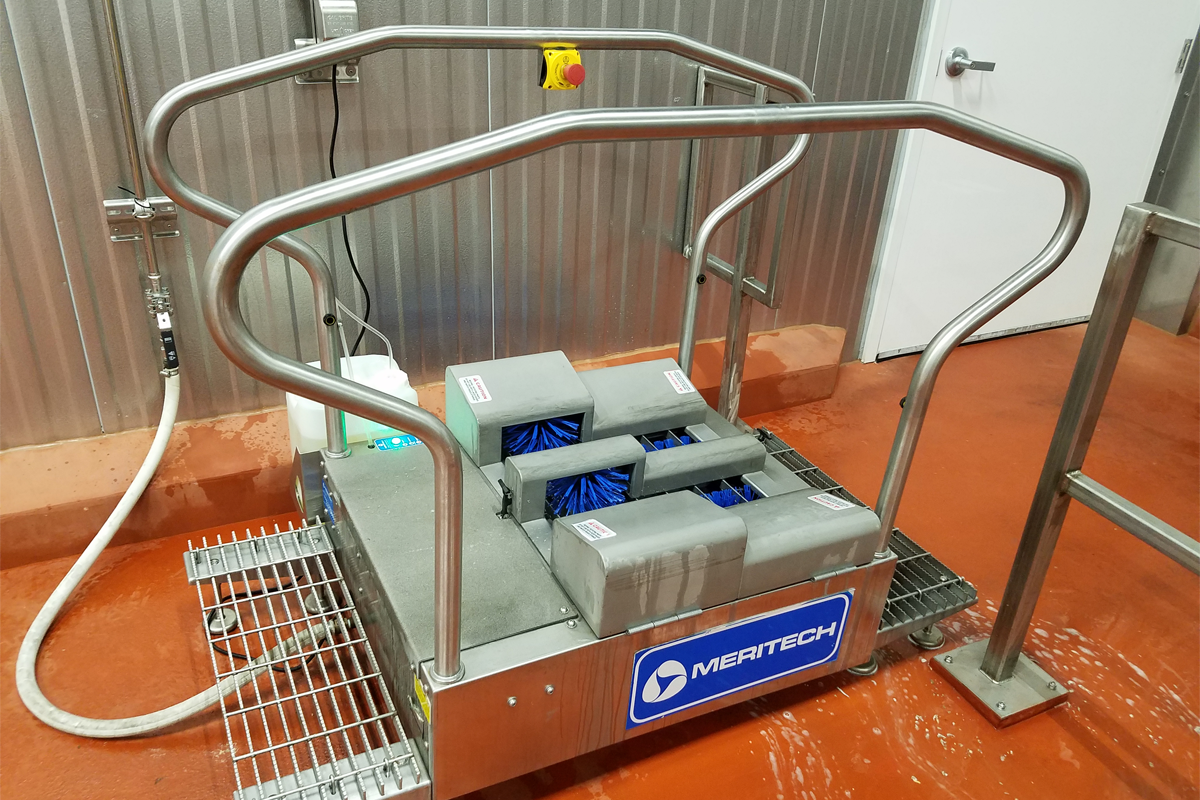

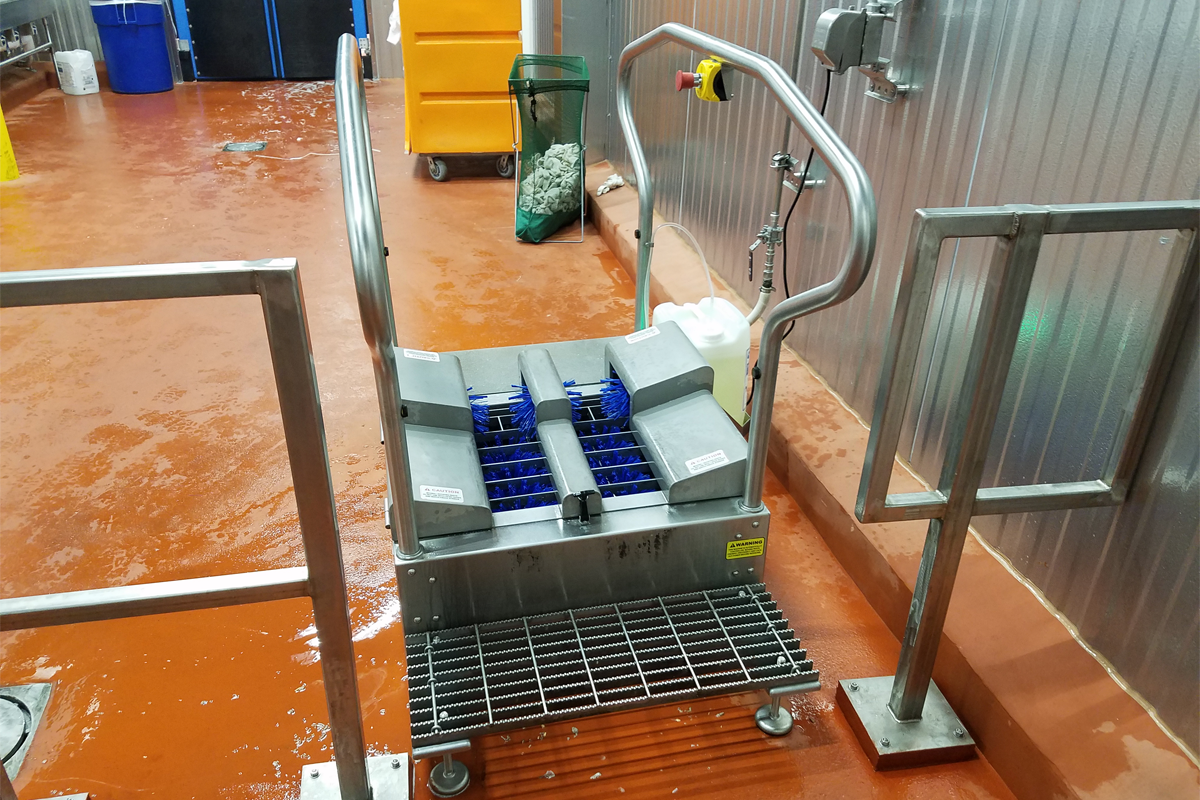

Meritech’s MBW 3000 boot scrubber system sanitizes up to three inches of the sides of rubber boots and other footwear without laces.* The MBW 3000 boot scrubber is a boot wash station designed for use with ankle high boots, or where scrubbing and sanitizing is not required for the entire boot. MBW 3000 boot scrubbers clean boots at plant entrances and provides cross contamination control between processing operations.  The Meritech MBW 3000 Boot Scrubber and boot wash station is designed for wet, industrial environments.

Meritech’s MBW 3000 compact boot scrubber is efficiently designed, easy to install, and fits into tight spaces where other brands can’t be used. Constructed in heavy-duty stainless steel, the MBW boot scrubber is easy to clean – brushes can easily be removed for quick cleaning or replacement. Meritech is the only manufacturer of boot scrubbers and boot wash station that includes a 5-year parts warranty, which includes 2 visits per year for cleaning, calibration, and certification – and on-call service at no charge.

*The MBW 3000 boot scrubber is available with a variety of options to customize your specific application.

+ REQUEST MORE INFORMATION
+ WATCH THE MBW 3000 VIDEO
  • Overview
  • Overview

    • Low profile boot scrubber
    • Compact design for tight spaces
    • Efficient boot wash station
    • Bidirectional Photoeye Operation
    • Adjustable Sole Depth
    • Tool-less Easy Brush Removal
    • Ready Indicator Light
    • Wash Indicator Light
    • Main Power Shut Off Switch
    • Soap Empty Indicator Light & Alarm
    • Easy Clean Hygienic Design
    • Non-Slip Surfaces
    • Optional Heavy-Duty Brushes for stubborn debris
  • Specifications
  • Specifications

    • Dimensions: 32" width x 66 1/2" length x 49" height. 42 1/8" width with soap basket
    • Horizontal Brush Length: 13"
    • Weight: 350 lbs. approximately
    • Shipping Weight: 650 lbs.
    • Cycle Activation: photoeye operation, bidirectional.
    • Water Consumption: 0.3 gallons at an 8-second cycle
    • Electrical: 120 VAC, 50/60 Hz, 1300 W running, 20 AMP breaker. International voltages available.
    • Plumbing Inlet: 3/4" male garden hose, minimum 4 GPM, 1000 F Max 30-40 PSI, 50 PSI maximum, cold line (System equipped with a pressure regulator.)
    • Drain: 2” MNPT Drain Pipe (Floor drain required.)
    • Solutions Storage: 1 — 20 Liter sanitizing chemical container
    • Solutions Compatibility: Required sanitizing solutions provided only by Meritech (Other solutions will void warranty.)
  • Available Options
  • Available Options

    • 3” vertical brushes
    • Photoeye operation
    • Optional bi-directional
    • Adjustable sole depth
    • Adjustable cycle time
    • Ready indicator light
    • Washing indicator light
    • Emergency stop
    • No tools required for brush removal
    • Soap Empty indicator light
    • Soap Empty audible alarm
    • 20-liter soap container
  • Ideal Markets
  • Ideal Markets

    Ideal for production facilities where boot scrubbing and sanitizing are critical to prevent the spread of pathogens, and for facilities that utilize boots and non laced shoes and need 3" vertical side cleaning of footwear in addition to sole scrubbing and sanitizing. Automatically maintains required PPM kill level of sanitizing chemical. Visit your market for more insight into other available Meritech solutions.
